API Spec 16D GNG High-pressure Fire-resistant Hose Assemblies for Blowout Prevention and Well Control

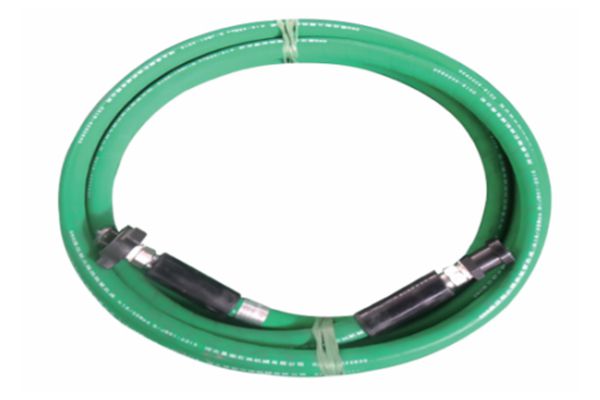

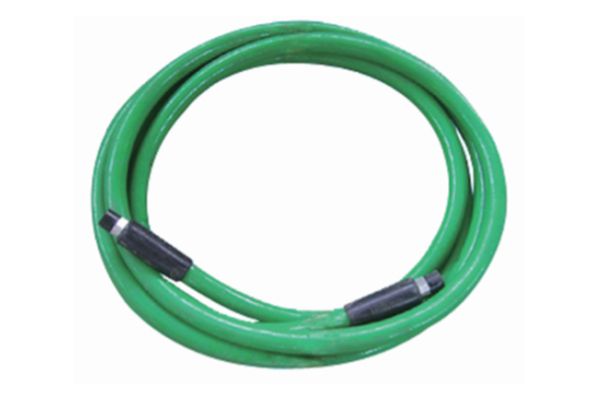

NBR/PVC covered hoses

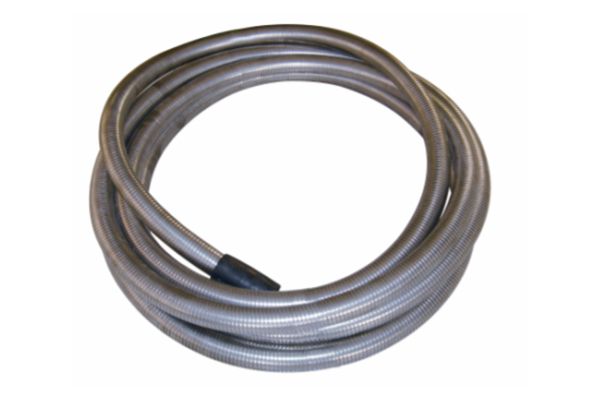

Antistatic and armored hoses
PU wrapped hoses
BOP hoses are mainly designed to connect blowout preventers and control systems in oil rigs, and to transport energy resources and other media in combustible environments. The BOP hoses have three types which are respectively wrapped by a layer of NBR/PVC, metal and PU.
Request a Quote
Features
The reinforcement layer of the drilling hose adopts imported high-strength steel wires.
The BOP hoses’ inner rubber layer, made with our special formula, is wear-resistant and can withstand the corrosion of water, gas and oil as well as extreme weathers. The formula can be adjusted based on transported contents.
The hose couplings adopt anti-corrosively and thermally treated 45K/60K materials in line with the working pressure and environment. With identical bore diameters, the couplings can be connected to the tube without leading to choked and eddy flows and cut loss.
The fire resistance layer adopts our company’s patented technologies, supporting the hoses to work for at least five minutes under the rated pressure and in the 705℃ fire.
The outer layer adopts different materials, metal, PU or NBR/PVC, anticorrosive, wear-resistant and antistatic.
Standard: API Spec 16D
Technical Parameters
Nominal diameter mm (in)
Max. Outer Diameter mm
Min. Burst Pressure MPa
Min. Bend Radius mm
Inner Diameter mm
Bore Diameter mm
Diameter of Drift Diameter Gauge mm
Connection
21MPa/ 3000Psi
35MPa/ 35000Psi
21MPal 3000Psi
35MPa/ 3500OPsi
21MPa/ 3000Psi
35MPa/ 35000Psi
Min
Max
10(3/8)
35
38
63(9000)
103.5(15000)
180
180
10+0.1-0.7
8
10
80-0.1
NPT 3/8
12.5(1/2)
40
45
63(9000)
103.5(15000)
200
240
12.5+1-0.2
11
13
110-0.1
NPT 1/2
19(3/4)
45
48
63(9000)
103.5(15000)
280
350
19+0.8-0.4
17
19.5
170-0.1
NPT 3/4 NPT 1
25(1)
48
53
63(9000)
103.5(15000)
330
400
25+1.40
23
26
230-0.2
NPT 1
31.5 ( 1 1/4/)
53
65
63(9000)
103.5(15000)
450
500
31.5+1-0.6
30
32
300-0.2
NPT1 1/4
38 ( 1 1/2)
65
75
63(9000)
103.5(15000)
550
600
38+1.3-0.3
36
39
360-0.2
NPT1 1/2
